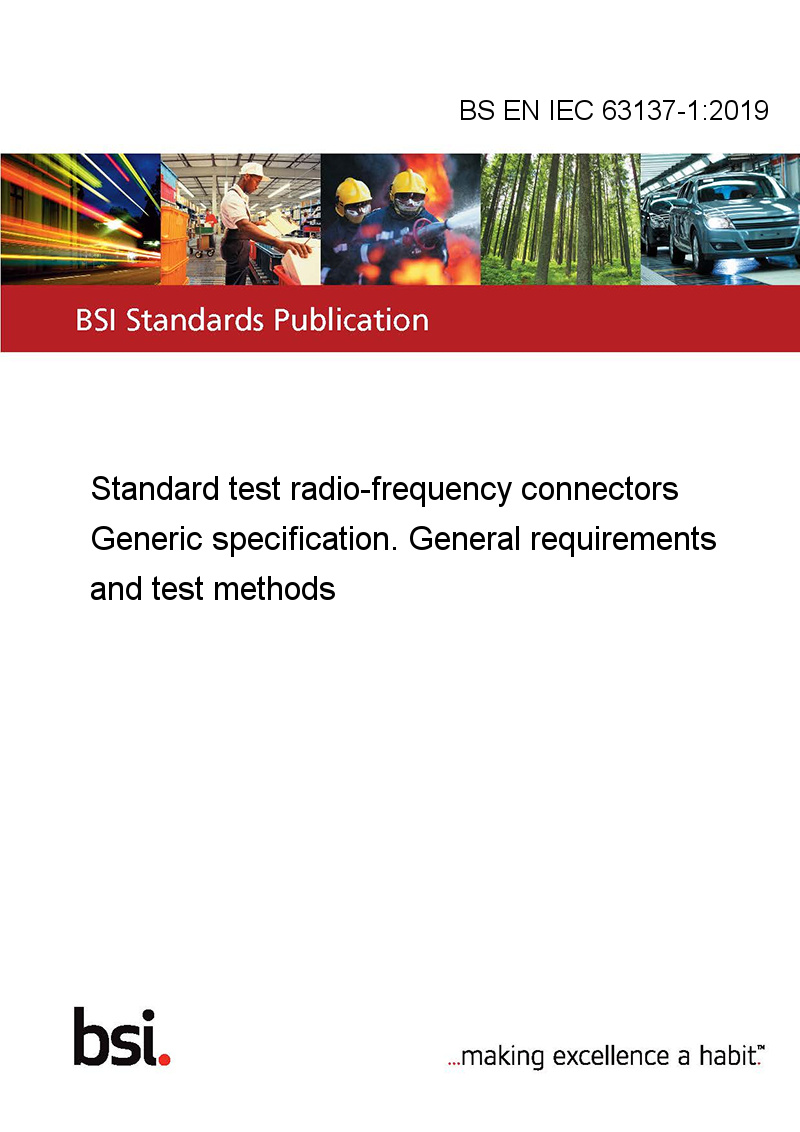

BS EN IEC 63137-1:2019 Standard Test Radio-Frequency Connectors

Standard Number: BS EN IEC 63137-1:2019

Pages: 30

Released: 2019-10-21

ISBN: 978 0 580 99134 9

Status: Standard

Overview

The BS EN IEC 63137-1:2019 is a comprehensive standard that provides a generic specification for radio-frequency connectors. This document outlines the general requirements and test methods necessary to ensure the quality and performance of these connectors. As a crucial component in the field of radio-frequency technology, this standard is essential for manufacturers, engineers, and quality assurance professionals who are involved in the design, production, and testing of RF connectors.

Key Features

• Comprehensive Coverage: This standard covers a wide range of radio-frequency connectors, providing detailed specifications and test methods to ensure their reliability and performance.
• General Requirements: It sets out the general requirements that RF connectors must meet, ensuring consistency and quality across different products and manufacturers.
• Test Methods: The document includes a variety of test methods designed to evaluate the performance and durability of RF connectors under different conditions.
• International Standard: As an internationally recognized standard, it facilitates global trade and ensures compatibility and interoperability of RF connectors worldwide.

Why This Standard is Important

Radio-frequency connectors are critical components in a wide range of applications, from telecommunications to broadcasting and beyond. Ensuring their performance and reliability is essential for the proper functioning of these systems. The BS EN IEC 63137-1:2019 standard provides a framework for testing and evaluating RF connectors, helping to prevent failures and ensure that they meet the necessary performance criteria.

By adhering to this standard, manufacturers can demonstrate their commitment to quality and reliability, providing assurance to their customers that their products meet the highest standards. This is particularly important in industries where performance and reliability are critical, such as aerospace, defense, and telecommunications.

Detailed Specifications

The standard includes detailed specifications for a variety of RF connectors, covering aspects such as:

• Mechanical Properties: Specifications for the physical dimensions, materials, and construction of RF connectors.
• Electrical Properties: Requirements for the electrical performance of connectors, including impedance, insertion loss, and return loss.
• Environmental Conditions: Guidelines for testing connectors under various environmental conditions, such as temperature, humidity, and vibration.

Test Methods

The standard outlines a range of test methods designed to evaluate the performance of RF connectors. These tests are essential for ensuring that connectors can withstand the demands of their intended applications. Some of the key test methods include:

• Mechanical Testing: Tests to assess the durability and mechanical integrity of connectors, including mating and unmating forces, durability, and mechanical shock.
• Electrical Testing: Tests to evaluate the electrical performance of connectors, such as voltage standing wave ratio (VSWR), insertion loss, and isolation.
• Environmental Testing: Tests to determine the performance of connectors under various environmental conditions, including temperature cycling, humidity, and salt spray.

Conclusion

The BS EN IEC 63137-1:2019 standard is an essential resource for anyone involved in the design, production, or testing of radio-frequency connectors. By providing a comprehensive set of specifications and test methods, it ensures that these critical components meet the necessary performance and reliability standards. Whether you are a manufacturer looking to ensure the quality of your products, or an engineer seeking to understand the requirements for RF connectors, this standard is an invaluable tool.

With its detailed guidelines and internationally recognized status, the BS EN IEC 63137-1:2019 standard is a key component in the global RF connector industry, helping to ensure the compatibility, reliability, and performance of these essential components.

BS EN IEC 63137-1:2019

This standard BS EN IEC 63137-1:2019 Standard test radio-frequency connectors is classified in these ICS categories:

• 33.120.30 RF connectors

IEC 63137-1:2019 defines general requirements for standard test radio frequency (RF) connectors (grade 0), including terms and definitions, ratings and characteristics, general requirements, test methods, quality assessment procedures, and etc.
Standard test radio frequency (RF) connectors (grade 0) are intended to measure grade 1 and grade 2 RF connectors for electrical performances. Typically, a standard test radio frequency (RF) connector (grade 0) is an adapter with one end (normally a precision connector interface) which can be connected with measurement equipment and the other end (normally a standard test connector interface) which can be connected with grade 1 or grade 2 connectors.
This specification applies to grade 0 standard test connectors (called connector, hereinafter).
