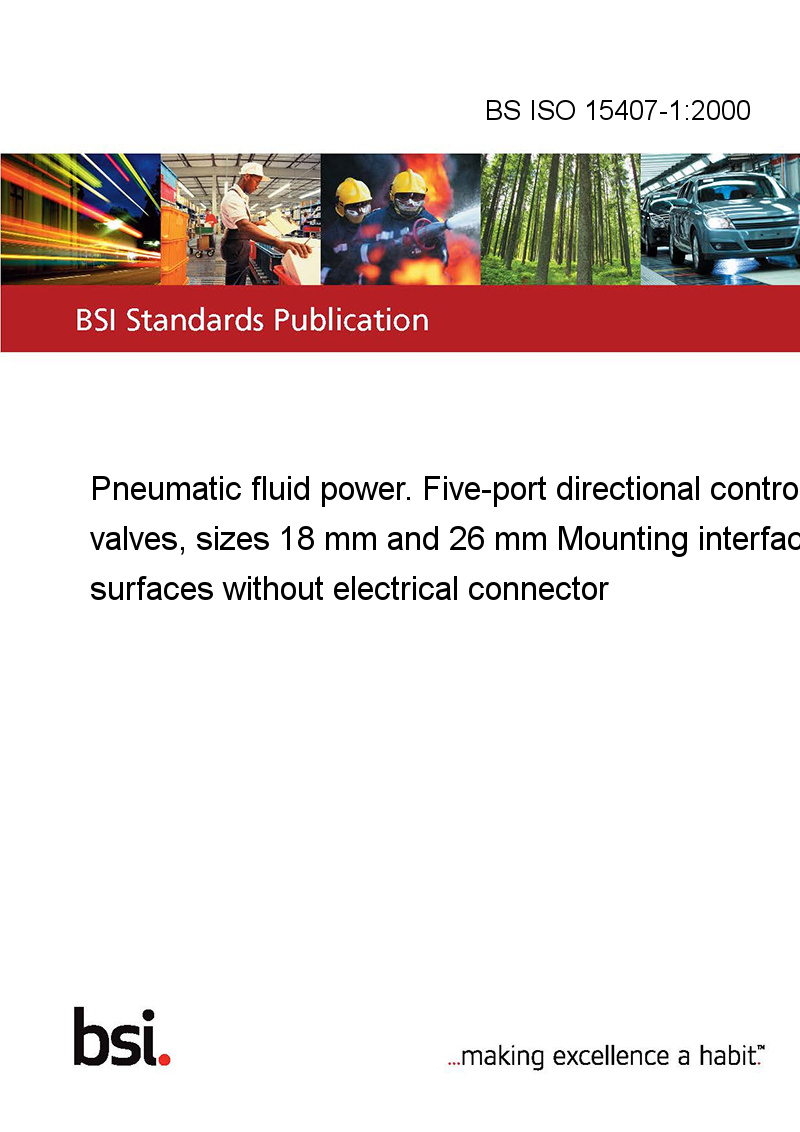

BS ISO 15407-1:2000

This standard BS ISO 15407-1:2000 Pneumatic fluid power. Five-port directional control valves, sizes 18 mm and 26 mm is classified in these ICS categories:

• 23.100.50 Control components

This part of ISO 15407 specifies the following requirements for a mounting interface for five-port pneumatic directional control valves, sizes 18 mm and 26 mm, without electrical connector, for use at a maximum rated pressure of 1,6 MPa [16 bar¹⁾]:

• dimensions and tolerances of the interface features;

• port identification;

• identification of the result of control-mechanism actuation.

It is not applicable to the functional characteristics of interfaces.

NOTE Requirements for mounting five-port pneumatic directional control valves of sizes 18 mm and 26 mm with optional electrical connector are given in ISO 15407-2.
