Released: 01.04.2019

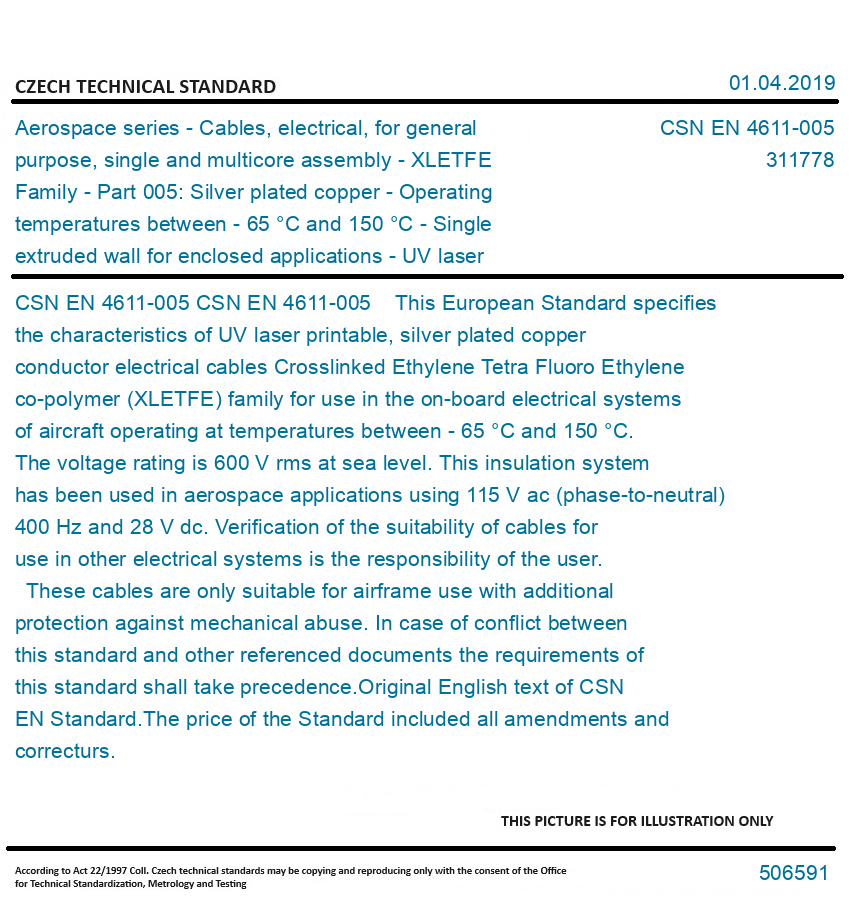

CSN EN 4611-005 - Aerospace series - Cables, electrical, for general purpose, single and multicore assembly - XLETFE Family - Part 005: Silver plated copper - Operating temperatures between - 65 °C and 150 °C - Single extruded wall for enclosed applications - UV laser printable - Product standard

CSN EN 4611-005

Aerospace series - Cables, electrical, for general purpose, single and multicore assembly - XLETFE Family - Part 005: Silver plated copper - Operating temperatures between - 65 °C and 150 °C - Single extruded wall for enclosed applications - UV laser printable - Product standard

Format
Availability
Price and currency
English Hardcopy
In stock
52.00 EUR
FREE Shipping
Number of Standard:CSN EN 4611-005
Category:311778
Pages:16
Released:01.04.2019
Catalog number:506591
DESCRIPTION

CSN EN 4611-005

CSN EN 4611-005 This European Standard specifies the characteristics of UV laser printable, silver plated copper conductor electrical cables Crosslinked Ethylene Tetra Fluoro Ethylene co-polymer (XLETFE) family for use in the on-board electrical systems of aircraft operating at temperatures between - 65 °C and 150 °C. The voltage rating is 600 V rms at sea level. This insulation system has been used in aerospace applications using 115 V ac (phase-to-neutral) 400 Hz and 28 V dc. Verification of the suitability of cables for use in other electrical systems is the responsibility of the user. These cables are only suitable for airframe use with additional protection against mechanical abuse. In case of conflict between this standard and other referenced documents the requirements of this standard shall take precedence.
Original English text of CSN EN Standard.
The price of the Standard included all amendments and correcturs.
