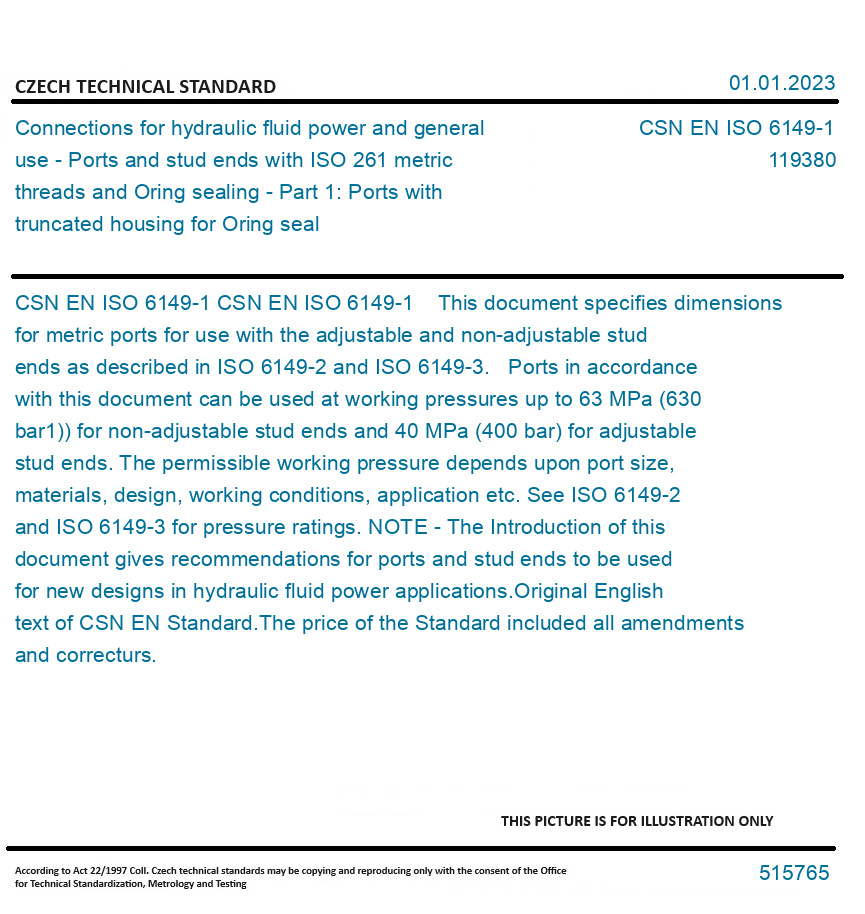

Connections for hydraulic fluid power and general use - Ports and stud ends with ISO 261 metric threads and Oring sealing - Part 1: Ports with truncated housing for Oring seal
Format
Availability
Price and currency
English Hardcopy
In stock
52.00 EUR
FREE Shipping
Number of Standard:
CSN EN ISO 6149-1
Category:
119380
Pages:
20
Released:
01.01.2023
Catalog number:
515765
DESCRIPTION
CSN EN ISO 6149-1
CSN EN ISO 6149-1 This document specifies dimensions for metric ports for use with the adjustable and non-adjustable stud ends as described in ISO 6149-2 and ISO 6149-3. Ports in accordance with this document can be used at working pressures up to 63 MPa (630 bar1)) for non-adjustable stud ends and 40 MPa (400 bar) for adjustable stud ends. The permissible working pressure depends upon port size, materials, design, working conditions, application etc. See ISO 6149-2 and ISO 6149-3 for pressure ratings. NOTE - The Introduction of this document gives recommendations for ports and stud ends to be used for new designs in hydraulic fluid power applications. Original English text of CSN EN Standard. The price of the Standard included all amendments and correcturs.
