Homepage>CSN Standards>01 GENERAL CLASS>0132 Engineering drawing>CSN EN ISO 6410-3 - Technical drawings - Screw threads and threaded parts - Part 3: Simplified representation
Not available online - contact us!
Released: 01.10.2021

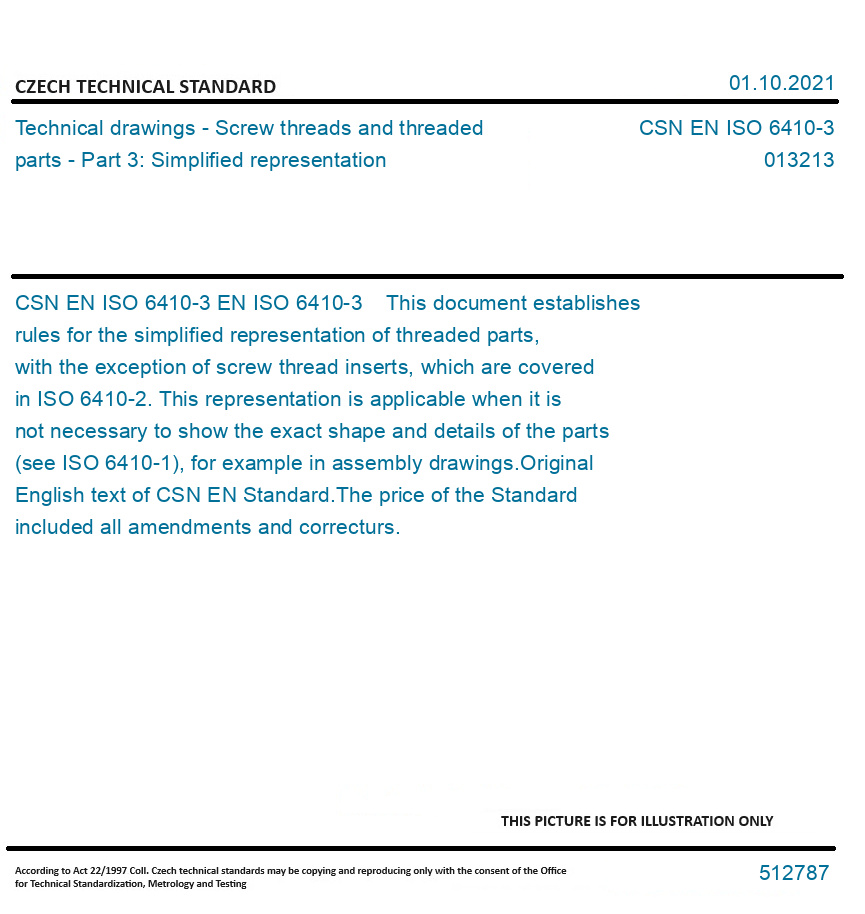

CSN EN ISO 6410-3 - Technical drawings - Screw threads and threaded parts - Part 3: Simplified representation

CSN EN ISO 6410-3

Technical drawings - Screw threads and threaded parts - Part 3: Simplified representation

CURRENCY
52 EUR
FREE Shipping
Number of Standard:CSN EN ISO 6410-3
Category:013213
Pages:20
Released:01.10.2021
Catalog number:512787
DESCRIPTION

CSN EN ISO 6410-3

EN ISO 6410-3 This document establishes rules for the simplified representation of threaded parts, with the exception of screw thread inserts, which are covered in ISO 6410-2. This representation is applicable when it is not necessary to show the exact shape and details of the parts (see ISO 6410-1), for example in assembly drawings.
Original English text of CSN EN Standard.
The price of the Standard included all amendments and correcturs.
