Homepage>IEC Standards>IEC 61188-5-5:2007 - Printed boards and printed board assemblies - Design and use - Part 5-5: Attachment (land/joint) considerations - Components with gull-wing leads on four sides

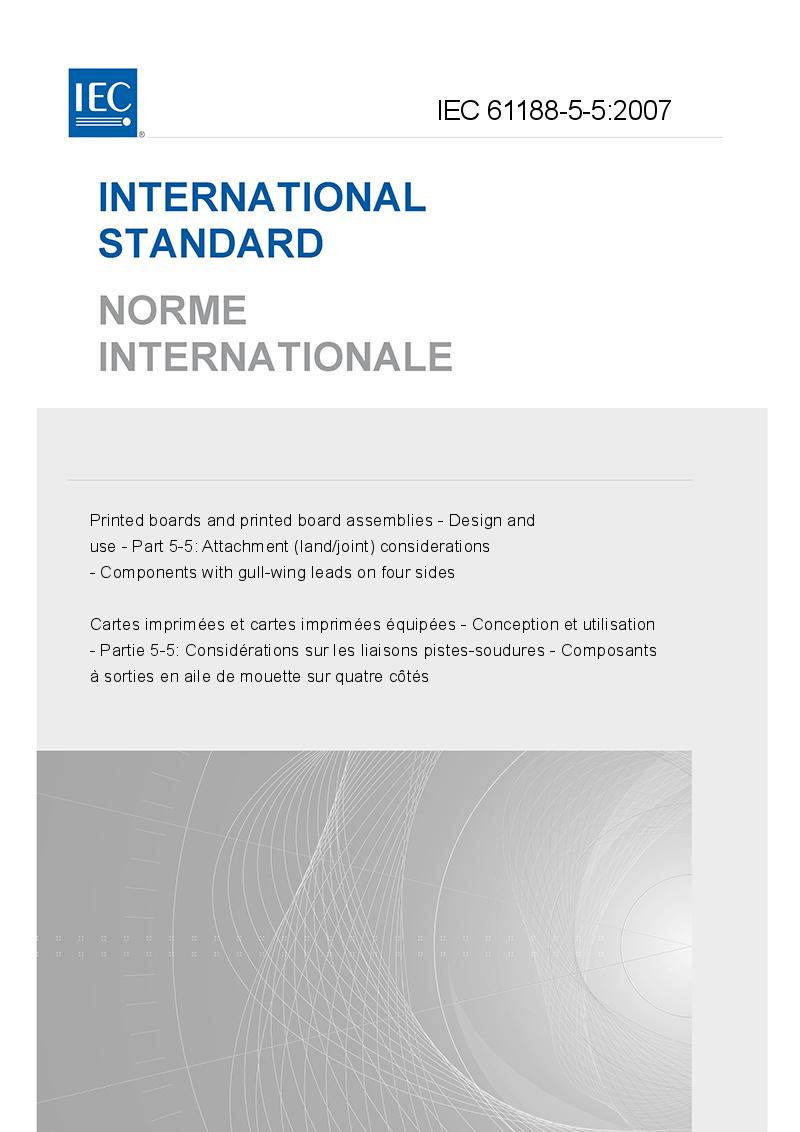

IEC 61188-5-5:2007

Printed boards and printed board assemblies - Design and use - Part 5-5: Attachment (land/joint) considerations - Components with gull-wing leads on four sides

Cartes imprimées et cartes imprimées équipées - Conception et utilisation - Partie 5-5: Considérations sur les liaisons pistes-soudures - Composants à sorties en aile de mouette sur quatre côtés

English/French - Bilingual PDF

Immediate download

308.00 EUR

English/French - Bilingual Hardcopy

in stock

308.00 EUR

Standard number:	IEC 61188-5-5:2007
Released:	2007-10-30
Language:	English/French - Bilingual

DESCRIPTION

IEC 61188-5-5:2007

IEC 61188-5-5:2007 provides information on land pattern geometries used for the surface attachment of electronic components with gull-wing leads on four sides. The intent of the information presented herein is to provide the appropriate size, shape and tolerances of surface mount land patterns to ensure sufficient area for the appropriate solder fillet, and also allow for inspection, testing and reworking of those solder joints. This publication is to be read in conjunction with IEC 61188-5-1 :2002.
