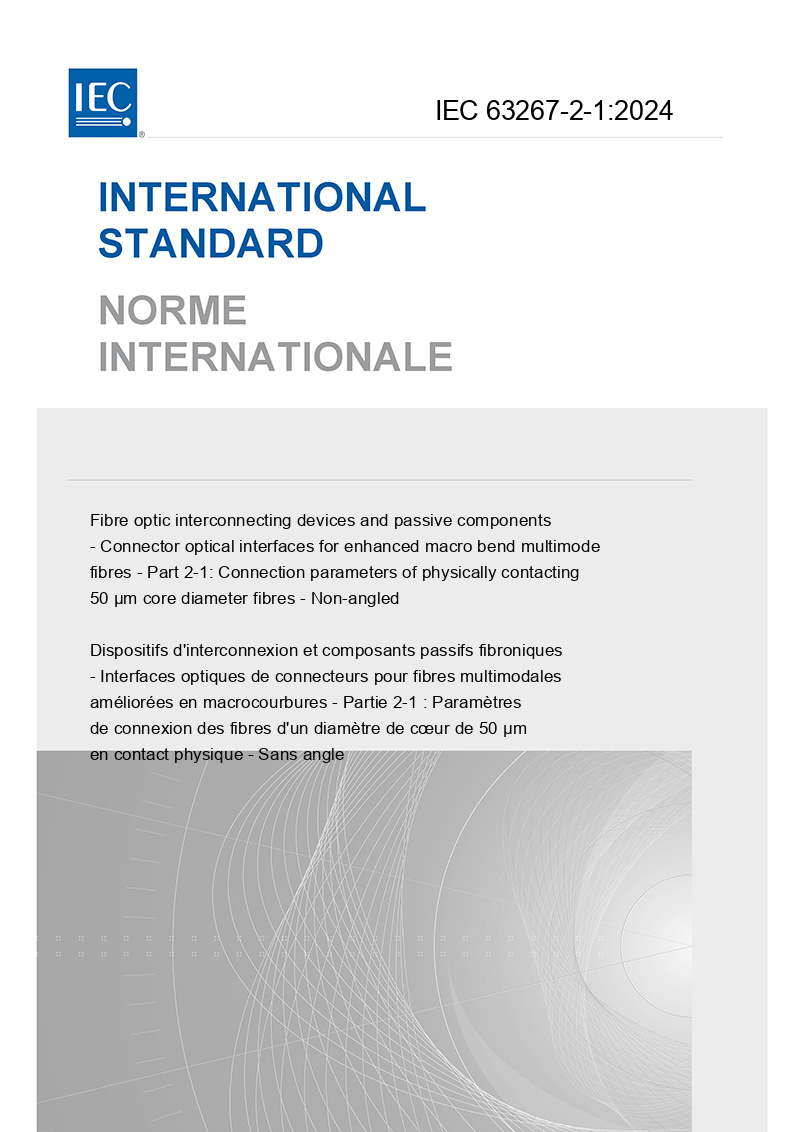

IEC 63267-2-1:2024
Fibre optic interconnecting devices and passive components - Connector optical interfaces for enhanced macro bend multimode fibres - Part 2-1: Connection parameters of physically contacting 50 µm core diameter fibres - Non-angled
Dispositifs d'interconnexion et composants passifs fibroniques - Interfaces optiques de connecteurs pour fibres multimodales améliorées en macrocourbures - Partie 2-1 : Paramètres de connexion des fibres d'un diamètre de cœur de 50 µm en contact physique - Sans angle
| Standard number: | IEC 63267-2-1:2024 |
| Released: | 2024-03-15 |
| Language: | English/French - Bilingual |
IEC 63267-2-1:2024
IEC 63267-2-1:2024 defines a set of specified conditions for an enhanced macro bend of 50/125 µm, graded index multimode fibre optic connection that is maintained in order to satisfy the requirements of attenuation and return loss performance in a randomly mated pair of polished physically contacting (PC) fibres. An encircled flux (EF) compliant launch condition in accordance with IEC 61300-1, at an operational wavelength of 850 nm, is used for determination of performance grades, based on lateral fibre core offset, numerical aperture (NA) mismatch, and fibre core diameter (CD) variation. Fibre core angular offset is considered insignificant given the state-of-the-art and is excluded as a factor for attenuation estimation. Attenuation and return loss performance grades are defined in IEC 63267-1.
