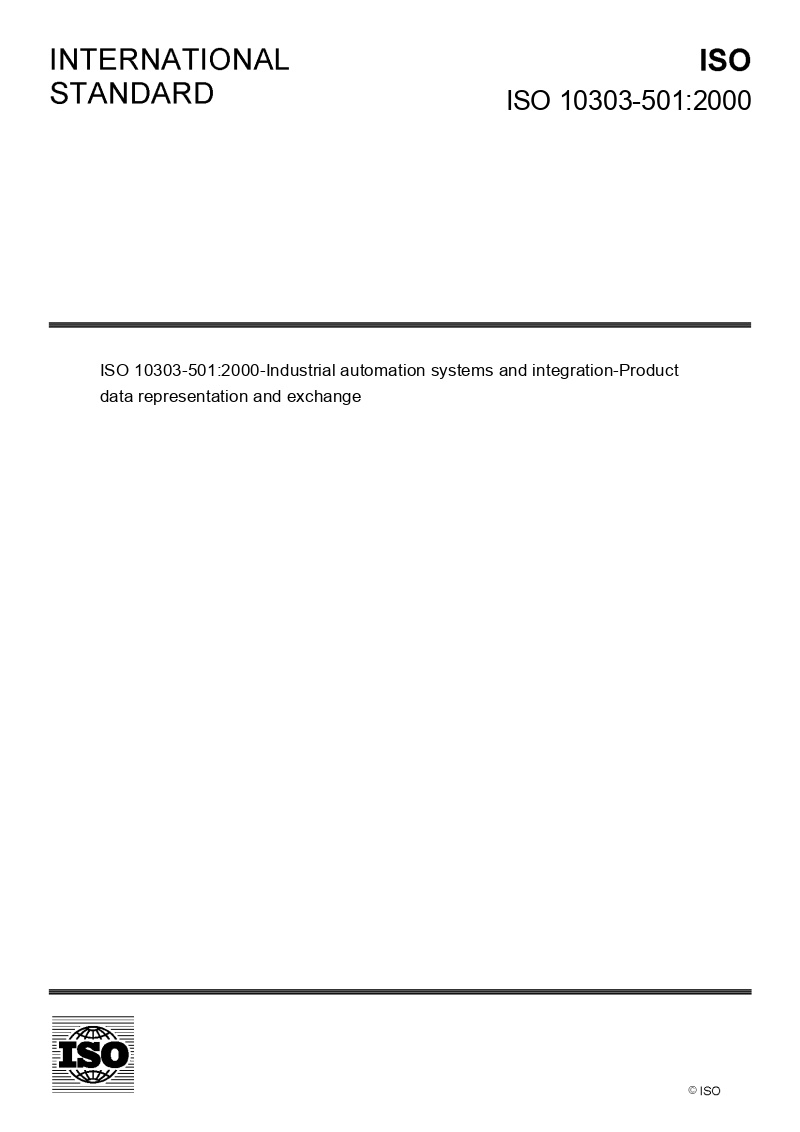

ISO 10303-501:2000-Industrial automation systems and integration — Product data representation and exchange-Part 501: Application interpreted construct: Edge based wireframe
Format
Availability
Price and currency
English PDF
Immediate download
155.00 EUR
English Hardcopy
In stock
155.00 EUR
Standard´s number: | ISO 10303-501:2000 |
Pages: | 19 |
Edition: | 1 |
Released: | 2000 |
Language: | English |
DESCRIPTION
ISO 10303-501:2000
This part of ISO 10303 specifies the interpretation of the integrated resources to satisfy requirements for the representation of the product shape using three-dimensional wireframe models that are bounded by a set of connected edge sets. The following are within the scope of this part of ISO 10303: — the representation of wireframe models that are described by a graph of edges and vertices where the edges intersect only at their vertices; — the representation of a wireframe model by one or more connected edge sets that shall not overlap or intersect except at their vertices or edges; — points defined in a three-dimensional coordinate space; — curves, including b-splines, defined in a three-dimensional coordinate space; — the representation of a single wireframe model or an assembly of wireframe models. The following are outside the scope of this part of ISO 10303: — geometry defined in a two-dimensional coordinate space; — surface geometry; — solid geometry; — shell topology.
