ISO 13041-7:2004

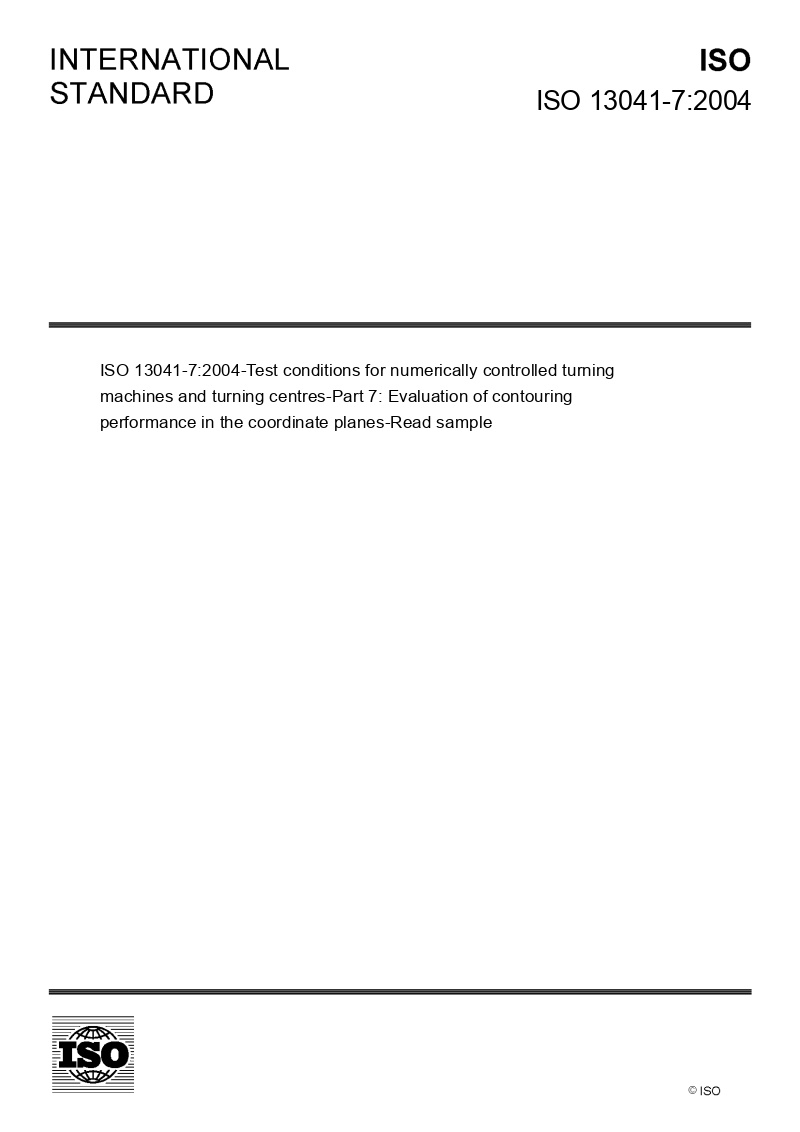

ISO 13041-7:2004-Test conditions for numerically controlled turning machines and turning centres-Part 7: Evaluation of contouring performance in the coordinate planes
Format
Availability
Price and currency
English PDF
Immediate download
46.00 EUR
English Hardcopy
In stock
46.00 EUR
French PDF
Immediate download
46.00 EUR
French Hardcopy
In stock
46.00 EUR
| Standard´s number: | ISO 13041-7:2004 |
| Pages: | 4 |
| Edition: | 1 |
| Released: | 2004 |
DESCRIPTION
ISO 13041-7:2004
ISO 13041-7:2004 describes a method of checking the contouring performance of turning centres (or numerically controlled turning) by conducting circular tests and by evaluating the radial deviation F, and circular deviation G, in accordance with ISO 230-4:1996. The concept of checks by circular tests described in ISO 13041-7:2004 is to verify the circular movement only in one position per coordinate plane of the machine, at only one feed rate, and to repeat the test once in the opposite contouring direction.
