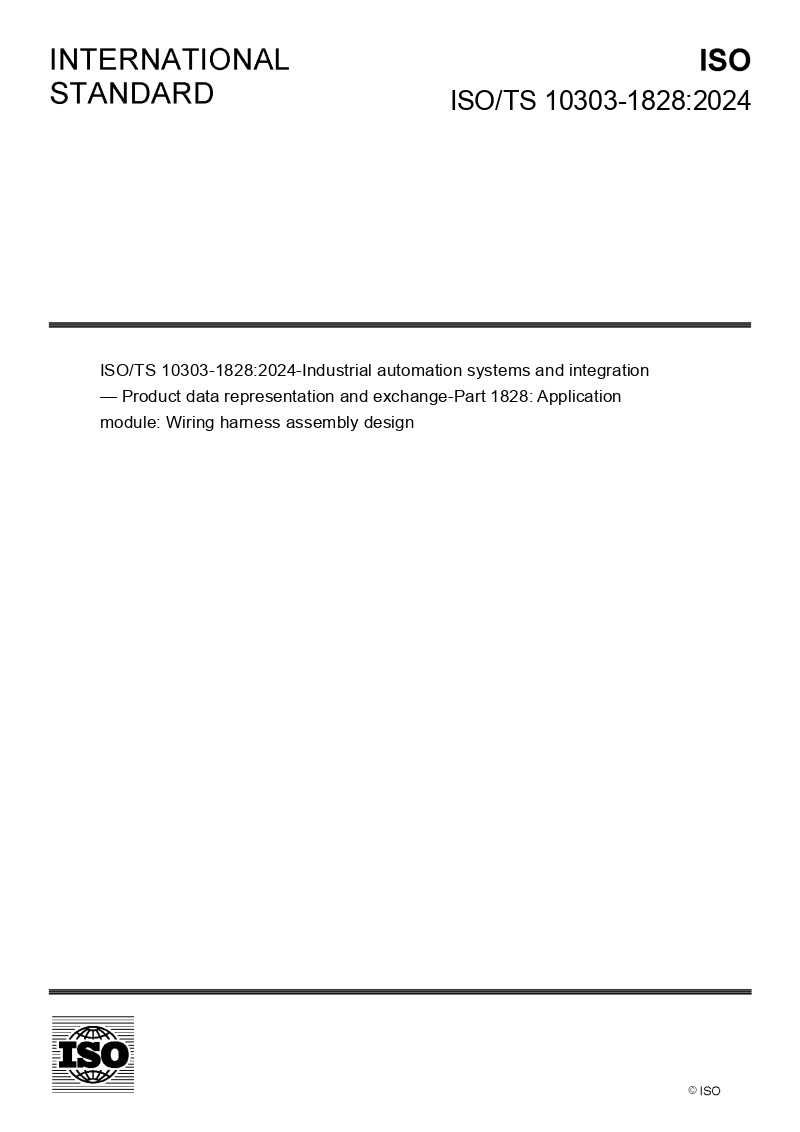

ISO/TS 10303-1828:2024

ISO/TS 10303-1828 specifies the application module for Wiring harness assembly design. The following are within the scope of ISO/TS 10303-1828: electrical definition of a wiring harness; wire-list for an wiring harness assembly, consisting of: wires and cables; terminal lug; terminal block; electrically non conductive through termination; wire cap; single and multi pin connector contact; splice definitions within the harness assembly; electrical shielding definition in the assembly. component-list for an wiring harness assembly, consisting of: connector and associated material; terminal lug; terminal block; electrically non conductive through termination; wire cap; single and multi pin connector contact; splice definitions within the harness assembly; electrical shielding definition in the assembly; tape marking. modifications made to the cables and wires to be used in the harness; assembly joints, each of which specify the mechanical connection between two terminals; requirement allocation from the physical connectivity definition to the implementing item in the wire list; assembly_joint that reference an external item; segment topology of an electrical harness; cross section structure of harness segments; marking of harness components and topology segments; protection of harness segments including: grommet; retention clamps; sleeving; overall shielding for one or more harness segments. items within the scope of application module Wire and cable design connectivity, ISO/TS 10303-1845; items within the scope of application module Extruded structure cross section, ISO/TS 10303-1827; items within the scope of application module Edge based topological representation with length, ISO/TS 10303-1830.
