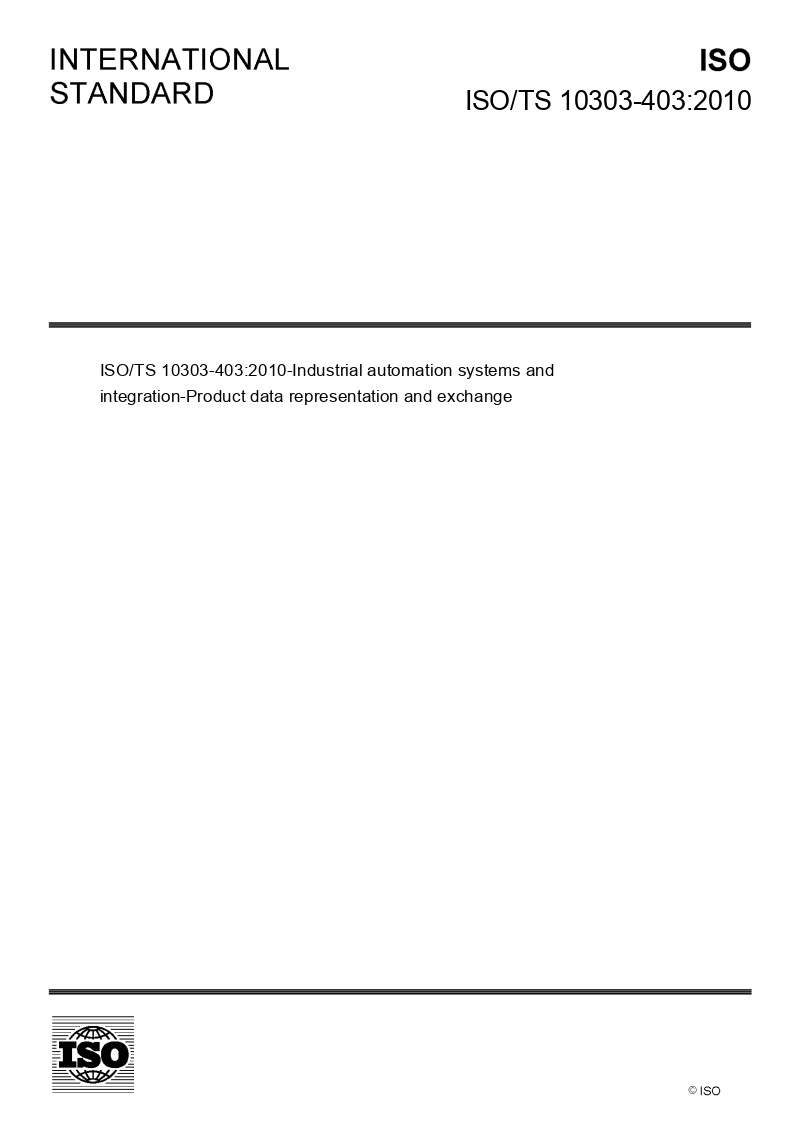

ISO/TS 10303-403:2010

ISO/TS 10303-403:2010-03 specifies the application module for AP203 configuration controlled 3D design of mechanical parts and assemblies. The following are within the scope of ISO/TS 10303-403:2010-03: products that are mechanical parts and assemblies; product definition data and configuration control data pertaining to the design phase of a product's development; representation of an instance of a part in an assembly through its usage in a sub-assembly; three dimensional shape representations of a part that includes: geometrically and topologically bounded wireframe models;geometrically bounded surface models;topologically bounded solid models with facetted, elementary and advanced faces;non surface bounded solid models including constructive solid geometry, curve swept and other swept solids, thickened face solid; solids with construction history;topologically bounded manifold surface and subsurface and non manifold surface models;topologically bounded compound models; geometric validation properties to allow the translation of geometric shape representations (advanced boundary representation and faceted boundary representation solids) to be checked for quality; geometric and dimensional tolerances applied to geometric shape representations; materials and their composition of chemical substance; composite material structure and shape; catalogue data characterized by property value pairs; three dimensional presentation of product data: arranging geometric elements in layers and groups and assigning colours;presentation styles for points, curves, surfaces and sections, including hatching and tiling;saved views of particular camera positions and sections;textual annotation and notes applied to geometric elements;presentation of geometric and dimensional tolerances; technical drawings as two dimensional presentation of product data.
